Fife Polaris DP-20 Web Guide Controller
Fife Polaris DP-20 Web Guide Controller - Image 2

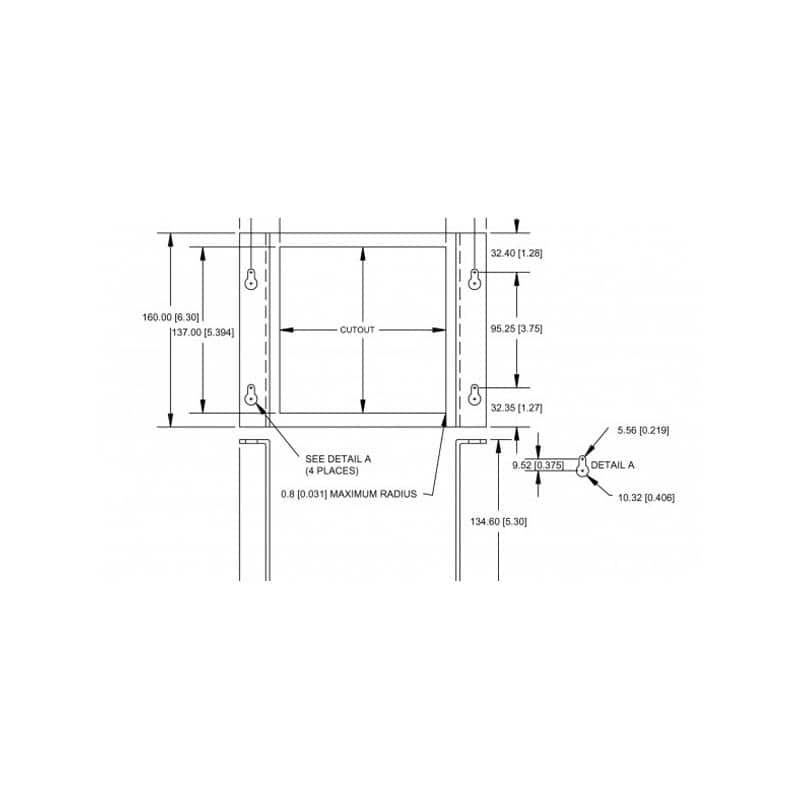

Fife Polaris DP-20 Web Guide Controller - Image 3
Fife Polaris DP-20 Web Guide Controller - Image 4

Fife Polaris DP-20 Web Guide Controller

Now you can have better web guide control that’s easier to use, with the same level of performance that you’ve grown accustomed to with Fife. Polaris is simple and easy to operate, with only eight keys and the ability to display four lines of text in a package that is flexible and easy to mount. Simply put, this is the easiest and most intuitive controller we’ve ever created. That’s why we named it for the guiding star, Polaris. It’s just one more way we’re helping you run faster, smarter and better.

Categories: , ,

Description

FIFE POLARIS DP-20 WEB GUIDE CONTROLLER SPECIFICATIONS

[tabbed_section style=”default” alignment=”left” spacing=”default” tab_color=”Accent-Color”][tab icon_family=”none” title=”Imperial” id=”1590475678399-9″ tab_id=”1590475678400-0″]
  • IP ProtectionIP54
  • Weight4 lb
  • Operating Ambient Temperature0 to 50˚ C
  • Power Consumption130 VA
  • Input Line Frequency47 to 63 Hz
  • Maximum Actuator Output 39 W at 30 V
  • Parallel Port6 digital inputs, 2 open collector outputs
  • Universal Input Line Voltage Range 100 VAC -10% to 240 VAC +10%
  • Sensor Inputs2 independent edge sensors or 1 line guide sensor (SE-26A or SE-46B)
    Maximum input ±20 mA, 0 to 10 mA (preferred)
  • Supply to Accessories+12 V ±5%, 400 mA, -12 V ±5%, 150 mA
  • Internal Fuse3.15 A
  • Servo CenterAnalog Inductive
  • Keypad Layout
  • Membrane Keys8
  • Basic FunctionsAuto, manual, servor-center
  • Sensor key SelectionsLeft edge, right edge, center line, line guide, auto setup,
    transparence setup (opacity), guide point adjustment,
    system and servo-center gain adjustment
  • Setup KeysJog left (- key), jog right (+ key)
    Enter key to complete function / setup or manual key to cancel
[/tab][tab icon_family=”none” title=”Metric” id=”1590475678420-3″ tab_id=”1590475678421-4″]
  • IP ProtectionIP54
  • Weight1.6 kg
  • Operating Ambient Temperature0 to 50˚ C
  • Power Consumption130 VA
  • Input Line Frequency47 to 63 Hz
  • Maximum Actuator Output 39 W at 30 V
  • Parallel Port6 digital inputs, 2 open collector outputs
  • Universal Input Line Voltage Range 100 VAC -10% to 240 VAC +10%
  • Sensor Inputs2 independent edge sensors or 1 line guide sensor (SE-26A or SE-46B)
    Maximum input ±20 mA, 0 to 10 mA (preferred)
  • Supply to Accessories+12 V ±5%, 400 mA, -12 V ±5%, 150 mA
  • Internal Fuse3.15 A
  • Servo CenterAnalog Inductive
  • Keypad Layout
  • Membrane Keys8
  • Basic FunctionsAuto, manual, servor-center
  • Sensor key SelectionsLeft edge, right edge, center line, line guide, auto setup,
    transparence setup (opacity), guide point adjustment,
    system and servo-center gain adjustment
  • Setup KeysJog left (- key), jog right (+ key)
    Enter key to complete function / setup or manual key to cancel
[/tab][/tabbed_section]

Fife Polaris DP-20 Web Guide Controller

Now you can have better web guide control that’s easier to use, with the same level of performance that you’ve grown accustomed to with Fife. Polaris is simple and easy to operate, with only eight keys and the ability to display four lines of text in a package that is flexible and easy to mount…

Polaris DP-20 Setup

Shomari Head, Technical Service Engineer, provides a step-by-step demonstration of basic setup functions for the Polaris DP-20 Web Guide Controller.
