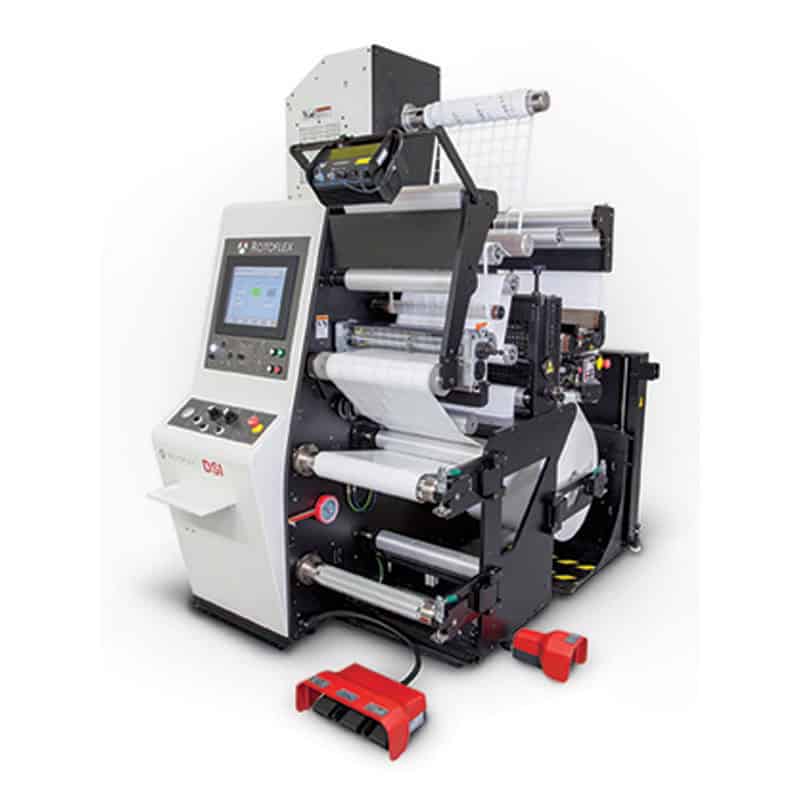

The redesigned DSI by Rotoflex is a versatile die cutting platform. The reduced footprint, enhanced accuracy and increased production speeds offer converters a more streamlined finishing workflow.
The flexible design fits a variety of inspection systems and allows the die cutting unit to be disengaged for specific jobs, meaning it may be run as a slitter/rewinder or die cutter, accommodating more applications and job types and making it the most efficient die cutting system available.
| Web Width | 13.25 / 17.25 in (330 / 440 mm) |
| Max Speed (may vary with application) |
Up to 1000 fpm (305 m/min) |
| Max Unwind Diameter | 28 in (711 mm) |
| Max Rewind Diameter (Single Spindle) | 18 in (457 mm) |
| Max Rewind Diameter (Dual Spindle) | 16 in (406 mm) |
| Die Station Anvil Size | 15 in (381 mm) |
| Die Repeat Range | 6.5 – 15 in (161 – 381 mm) |
| Control System | Rotoflex URC 2.0 |
| Drive System | Rotoflex eDrive 2.0 |
