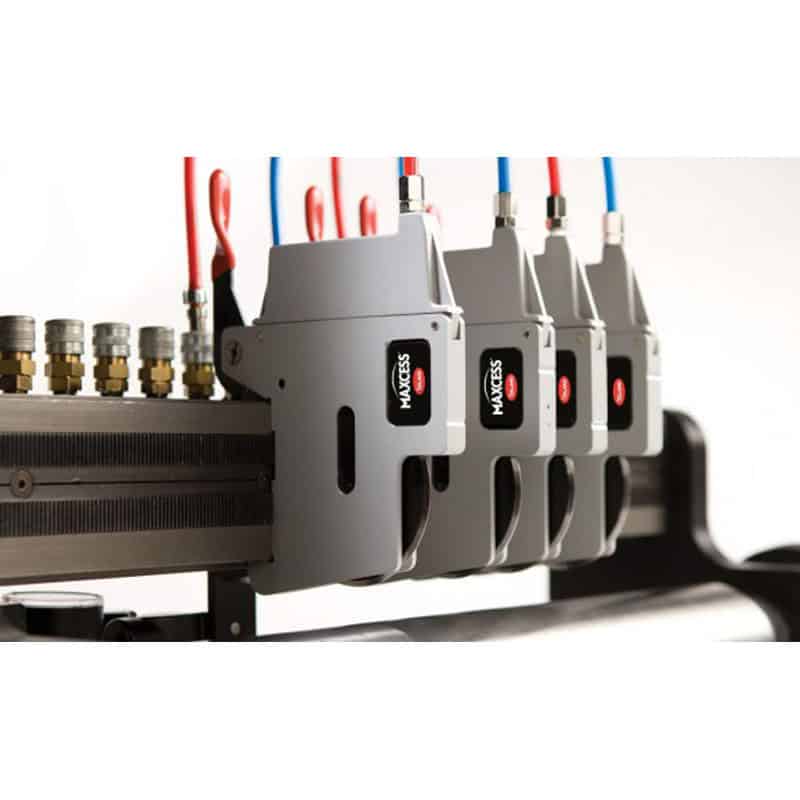

Tidland Precision Lock Crush Slitter Knifeholder

These crush (score) slitters are robust and affordable. Made of durable, die-cast metal and quality materials, Precision Lock knifeholders are suitable for typical crush (score) slitting in narrow web applications. The most affordable slitting system on the market, this knifeholder has indexing that assures precise, repeatable placement with 1 mm (0.04 inch) spaced increments, and the potential wobble of a tilted knifeholder is reduced significantly because of the true vertical alignment of the indexing rack. Set-up, installation and adjustments are a snap using a simple, effective toggle quick clamp.

Description

PRECISION LOCK SPECIFICATIONS

[tabbed_section style=”default” alignment=”left” spacing=”default” tab_color=”Accent-Color”][tab icon_family=”none” title=”Imperial” id=”1590456409128-4″ tab_id=”1590456409129-6″]
Pressure 32 to 6 bar
Maximum Slitting Speed 100 mpm
Tissue, Thin Film
Air Pressure* 2 bar
Blade Force 20 lb
Paper, Flex Pack Films
Air Pressure* 3 bar
Blade Force 31 lb
Kraft Paper, Labels
Air Pressure* 4 bar
Blade Force 40 lb
Light Board, Laminates
Air Pressure* 5 bar
Blade Force 51 lb
Light Board, Laminates
Air Pressure* 6 bar
Blade Force 62 lb

*Above 6 bar will adversely affect blade life, bearing life, knifeholder integrity and could cause grooving of the anvil surface.

[/tab][tab icon_family=”none” title=”Metric” id=”1590456409149-8″ tab_id=”1590456409150-8″]
Pressure 32 to 6 bar
Maximum Slitting Speed 100 mpm
Tissue, Thin Film
Air Pressure* 2 bar
Blade Force 9 kg
Paper, Flex Pack Films
Air Pressure* 3 bar
Blade Force 14 kg
Kraft Paper, Labels
Air Pressure* 4 bar
Blade Force 18 kg
Light Board, Laminates
Air Pressure* 5 bar
Blade Force 23 kg
Light Board, Laminates
Air Pressure* 6 bar
Blade Force 28 kg

*Above 6 bar will adversely affect blade life, bearing life, knifeholder integrity and could cause grooving of the anvil surface.
